InTensino
Full mass properties measurement
automotive
aviation
fast
easy
accurate
portable
- Only one test set-up for the complete inertia tensor
- Excellent accuracy
- Ease of use
- Portable
The InTenso series of instruments are full mass properties measurement instruments. They measure the weight, center of gravity location in 3 axes and the full inertia tensor: moment of inertia in 3 axes and product of inertia in 3 planes. The advantage of this system resides in the simplicity of use: the payload is only mounted in one configuration and all the mass properties are measured in that orientation.

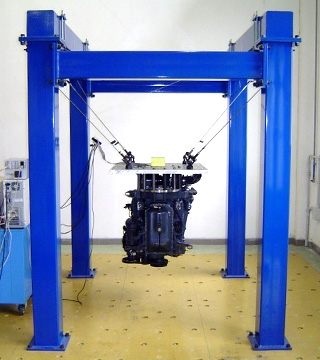

InTensino is thought for payloads between 7 and 400 kg. It was originally designed to measure the mass properties of engines.
Other sizes are in the works. Please, contact us with your specific payload requirements for a custom-size instrument.
Measurement
Just like Intenso, the Intensino is a non linear pendulum based on the same operation concept.
The most significant difference is that, due to its size and its design, Intensino is a portable system.
On request, SMARTMechanical is available to perform a complete measurement service at the customer’s premises.
(MOI: Moment of Inertia, POI: Product of Inertia)
PAYLOAD RANGE
| 7–400 kg |
COG UNCERTAINTY
| ±1.5 / ±3 mm (in-plane / height) |
MAXIMUM DIMENSIONS OF THE BODY
| 2000x1000x1000 mm (LxWxH)* |
MOI UNCERTAINTY
| ±1% |
MOTION FREQUENCY
| < 5 Hz |
POI ACCURACY
| ±0.5% (wrt max MOI of the body) |
PEAK ACCELERATION DURING TEST
| 3-9 m/s² (min-max) |
PRINCIPAL DIRECTIONS UNCERTAINTY
| ±1% |
TESTING TIME
| < 10 m (without set-up) |
MOI AND POI RESOLUTION
| 0.2% (wrt max MOI of the body) |
* These values are indicative ones; customized fixture can be realised
