Motorbike Smart Wheel
Road-tire forces measurement
automotive
wireless
races
lightness
easy
- Simple but carefully optimized design
- Limited mass
- Low cost

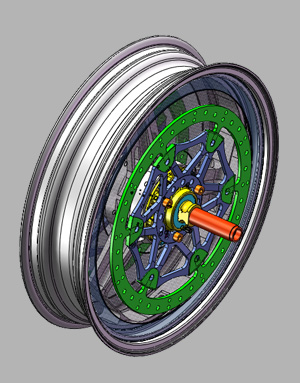

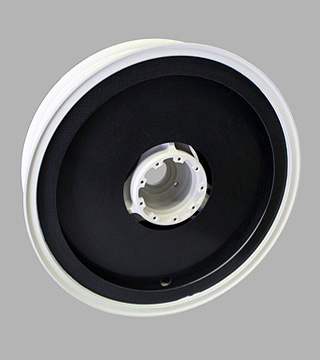

Starting from the “lessons learned” on four-wheel vehicles, SMARTMechanical has designed a new Smart Wheel concept for race motorbikes. Realized in close collaboration with Marchesini Racing, this prototype shows the typical three-spoke architecture and four new carbon fiber stiffening disks.
The system is able to perform real-time loads measurement; through a wireless connection, the data are made available, for example during track testing, on the CAN bus telemetry together with the other motorbike performance parameters.
The electronics is accommodated inside the motorbike hub; the system has a stand-alone autonomy of about four hours and can be easily recharged through a connector placed inside the brake rotor hat.
RIM SIZE
15”-18”
TOTAL MASS
3 kg
MAX FORCE X,Y,Z
6 kN
UNCERTAINTY 95%
0.5% F.S.
RESOLUTION
1 N
MAXIMUM TORQUE X,Y,Z
1.5 kNm
UNCERTAINTY 95%
0.3% F.S.
RESOLUTION
0.2 Nm
1ST NAT. FREQUENCY
> 300 Hz
CROSS-TALK 95%
< ±1% F.S.
MAX OVERLOAD
+50% F.S.
DATA ACQUISITION
6+1 wireless channels
DATA ACQUISITION FREQUENCY
up to 400 Hz
POWER SUPPLY
Battery
